Mira
tanking system is ideal for completely waterproofing damp and wet areas
in bathrooms, washrooms and shower areas. It consists of three main products
- Mira 4120 Sealer, Mira Multicoat and Mira Safecoat/Seal Manchets.
Mira 4120 Sealer
Liquid, acrylic based solutions with red colouring. Recommended as
primer in 'dry room' areas, (diluted on porous and concentrated
on wooden
surfaces.) Also recommended as water proofing coating for walls
in the 'damp-zone' in wet rooms.
Usage: Concentrated - 1kg/1litre cover 5-7m2 - Thinned with water in
ratio 1:3 (sealer:water) - 1kg/1litre 8-12m2
size |
price each |
1 litre |
£9.99 |
6 litre |
£54.99 |
12.5 litre |
£98.99 |
Mira 4400 Multicoat
Neoprene bases, thick liquid membrane for 100% waterproofing of all floor
and surfaces in the 'wet zone'. Applied to the surface with brush or
roller before and after laying safecoat roll. Also to be used for waterproofing
of wall/floor joints, corners, wall joints, apertures etc in the 'wet
room'
Usage: floors - min 1.5kg/m2 - Walls - min 1.25kg/m2
size
|
price each
|
1 kg
|
£12.99
|
6 kg
|
£64.99
|
15kg
|
£128.99
|
Mira Safecoat/Seal Manchets
Safecoat rolls are used with 4400 Multicoat when waterproofing floors,
joints, corners, and is available in 2 widths, The 10cm roll is used
for joints, edges and corners and the 1 metre wide roll cover the
main floor area and is available in 10 or 50 metre rolls. The Seal
Manchets
are used similarly with 4400 multicoat for the sealing of pipe and
drain apertures. The 125mm round Manchets is completely self adhesive
with circle marked for cutting out to sizes 10-50mm diameter, and
the Universal Seal Manchets is for 50-200mm diameters
type |
width |
length |
price each |
| safecoat roll |
10cm |
25m |
£15.99 |
| safecoat roll |
1m |
10m |
£55.99 |
| safecoat roll |
1m |
50mm |
£229.99 |
| Universal seal manchet - 50-200mm diameter |
32cm |
32cm |
£12.99 |
| small round manchet |
12cm diameter |
|
£5.99 |
Tanking ready reckoner
Sealer:
Wooden surfaces -m2 @ 0.2kg/m2 = ............kg
Porous surfaces - m2 @ 0.12kg =...........kg
Total Mira 4120
Multicoat:
walls -m2 @ 1.25kg/m2 =.............kg
Floors -m2 @ 1.5kg/m2 =...........kg
Total Mira 4400 multicoat
Wet-zones and damp-zones
The diagram illustrate the extent of the "wet-zone" and the "damp-zone"
in a bathroom, washroom and shower area.
The recommended degree of waterproofing is based on these defined areas.
N.B In Denmark, and other countries, approved water-proofing is a legal
requirement.
The wall behind the handbasin is only regarded as "wet-zone" if the
basin is fitted with a shower
Shower area
Bath area
Basin area

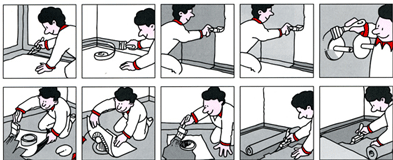

Mira installation guide
All price exclude VAT and delivery charge.
Phone: 0845 057 3455
Mob: 07843414993
E-mail: info@an-nam.co-uk
